Thermal Tank Qube X SQ-WD
Thermal Tank Qube X SQ-WD

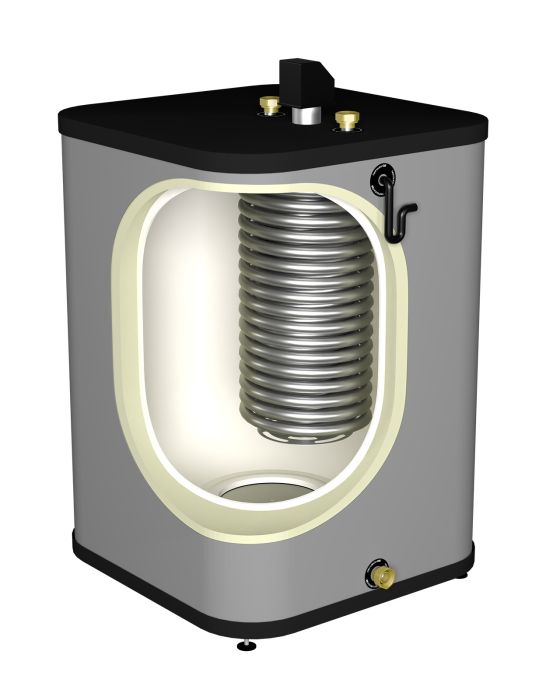

The Thermal Tank Qube X SQ-WD is an unpressurized hot water thermal storage tank equipped with a single high-efficiency corrugated stainless steel heat exchanger dedicated solely to providing instant, hygienic domestic hot water (DHW). Built using a durable polyethylene outer tank that utilizes water as a non-pressurized heat transfer medium, it offers a budget-friendly, highly reliable solution for safe, on-demand hot water generation.
Key Features
- Single High-Capacity DHW Exchanger: Large heat exchange surface area dedicated to continuous, instant hot water heating.
- Hygienic On-Demand Heating: Warms water only when tapped, reducing heat loss and providing enhanced Legionella prevention.
- 10–30% Energy Savings: Continuous-flow operation minimizes standby energy consumption compared to conventional pressurized storage tanks.
- Glycol-Free Thermal Storage: Uses plain water as the thermal mass, eliminating maintenance costs, concentration checks, and toxic contamination risks.
- Lightweight & Compact Construction: Easy to maneuver during transport and ideal for installations with tight access.
- Corrosion-Free & Low Maintenance: Durable polyethylene tank body designed for long service life even in harsh environments.
- Electric Backup Option: Supports 1 optional electric heater backup element.
Thermal Tank Qube X SQ-WD is designed for applications where the primary goal is high-output, continuous-flow domestic hot water (DHW) production from stored thermal energy without requiring extra heat source loops or heating circuit integration.
At the core of the system is an unpressurized polyethylene inner vessel filled with water as an energy-dense, non-pressurized heat transfer medium. Because water has a higher heat capacity and lower viscosity than traditional glycol mixtures, energy transfer occurs faster and more efficiently.

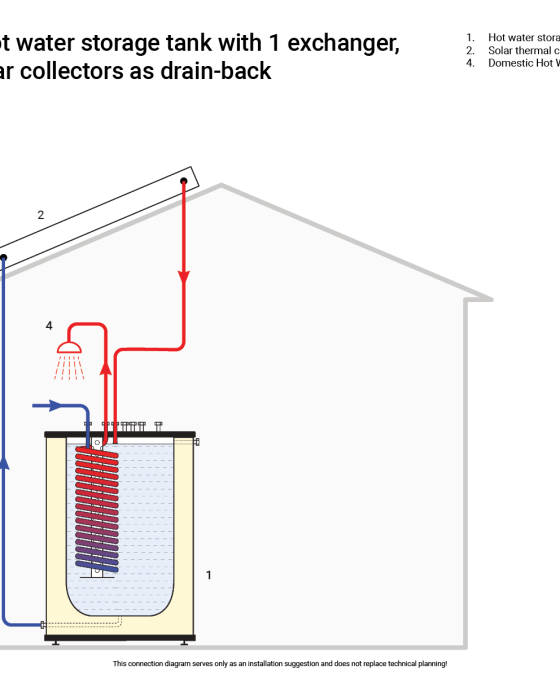

By routing fresh tap water through the top high-surface-area corrugated heat exchanger, the tank delivers instantaneous DHW on demand. Because fresh water is never stored in a large static volume, the risk of Legionella bacteria proliferation is virtually eliminated. This makes the SQ-WD model an ideal choice for residential environments, HORECA, schools, kindergartens, and healthcare facilities.
Ideal Applications:
- Renovations and direct hot water system upgrades where budget is limited.
- Applications requiring large, immediate DHW flow rates in clean environments.
- Energy-efficient residential installations using simple electric back-up heating.

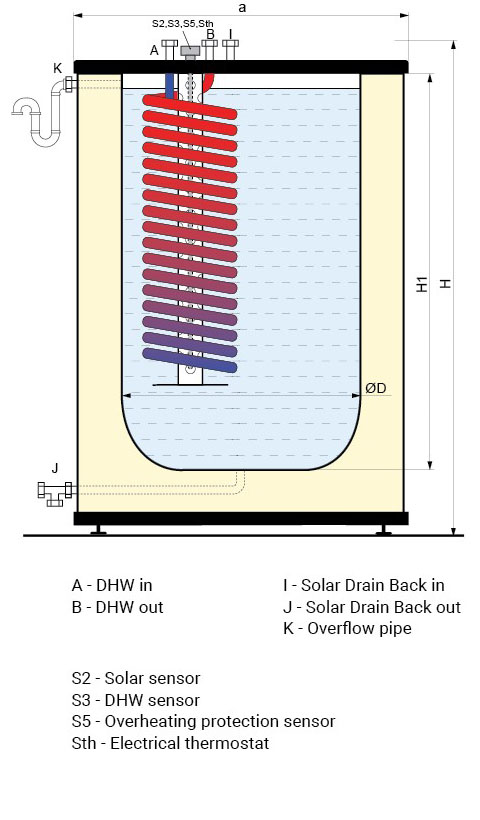

| QUBE X SQ-WD | 220 | 400 | |
|---|---|---|---|
| D (diameter) | (mm) | 620 | 890 |
| H1 (height) | (mm) | 845 | 845 |
| H (height) | (mm) | 1100 | 1100 |
| a (width) | (mm) | 725 | 960 |
| Pivot measurement | (mm) | 1320 | 1460 |
| Gross tank capacity | (l) | 220 | 400 |
| Weight | (kg) | 65 | 82 |
| Connections I, J | 5/4" | ||
| S2 Solar sensor position | (mm) | 450 | |
| S3 DHW sensor position | (mm) | 250 | |
| S5 Overheating protection position | (mm) | 250 | |
| Max. working temperature | (°C) | 90 | |
| Nominal flow rate | (l/min) | 20 | |
| Max. flow rate | (l/min) | 30 | |
| Max. working pressure | (bar) | 10 | |
| Max. test pressure | (bar) | 15 | |
| DHW Heat Exchanger | |||
| Connections A, B | 5/4" | ||
| Capacity | (l) | 17,55 | 23,25 |
| Output area | (m²) | 5,35 | 7,07 |
