UniQube SQ-B
Buffer Storage Tank
UniQube SQ-B
Installing buffer storage tanks is the first step to optimizing the heating system and improving its efficiency.
Buffer storage tank is absorbing the peaks of energy generators, and is releasing energy into the system when required.
- Stand-alone storage tank
- Buffer storage tank

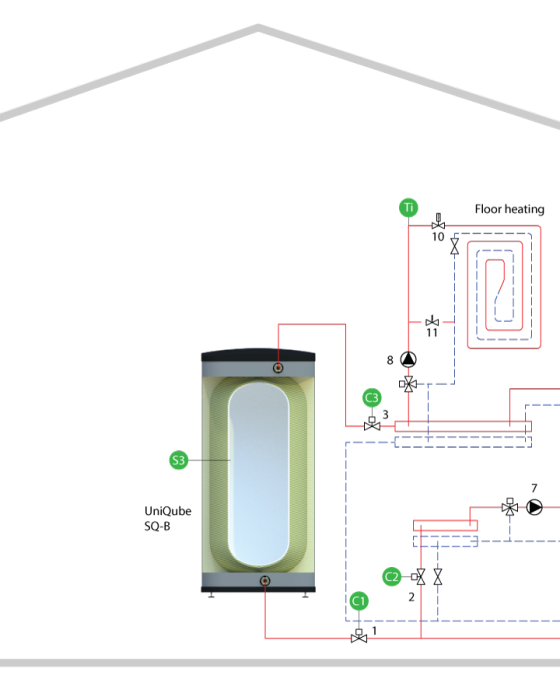

Buffer Storage tank function
Installing buffer storage tanks is the first step to optimizing the heating system and improving its efficiency.
Buffer storage tank is absorbing the peaks of energy generators, and is releasing energy into the system when required.
- equipped with one or two sleeves for sensors
- polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
- all flanges are replaceable and it can be modified to any other type of storage tank if necessary

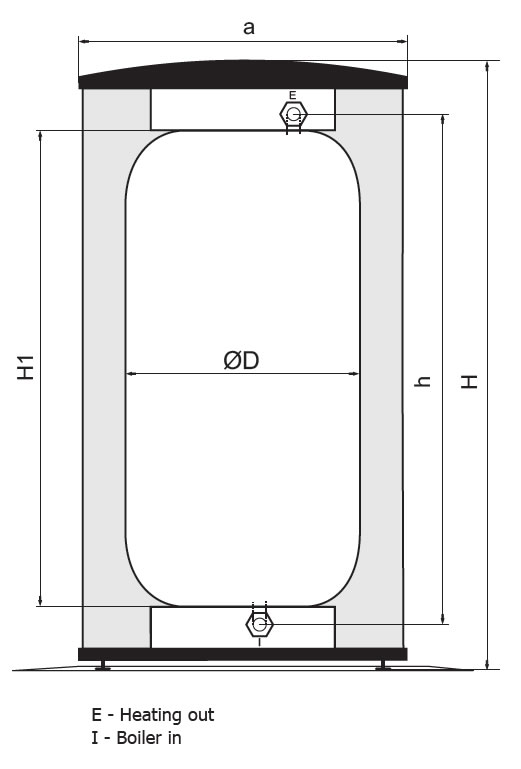

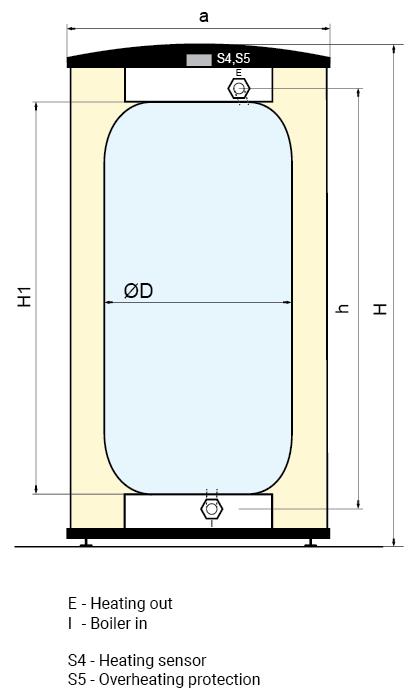

| Uniqube SQ-B | 310 | 440 | 800 | |
|---|---|---|---|---|
| D (diameter) | (mm) | 620 | 620 | 890 |
| H1 (height) | (mm) | 1300 | 1730 | 1730 |
| h (connectors) | (mm) | 1320 | 1750 | 1750 |
| H (height) | (mm) | 1570 | 2000 | 2000 |
| a (width) | (mm) | 725 | 725 | 960 |
| Pivot measurement | (mm) | 1730 | 2130 | 2219 |
| Net tank capacity | (l) | 310 | 440 | 800 |
| Approx. weight | (kg) | 82 | 103 | 124 |
| Connections E, I | 5/4" | |||
| Max. working temp. | (°C) | 90 | ||
| Max. working pressure | (bar) | 6 | ||
| Max. test pressure | (bar) | 9 | ||
| S4 Heating sensor position | (mm) | 140 | 140 | 140 |
| S5 Overheating protection | (mm) | 140 | 140 | 140 |
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
