UniQube Gas Condensing SQ-BPSW

Gas Condensing Boiler - Solar Support for Heating System - Hygienic Hot Water

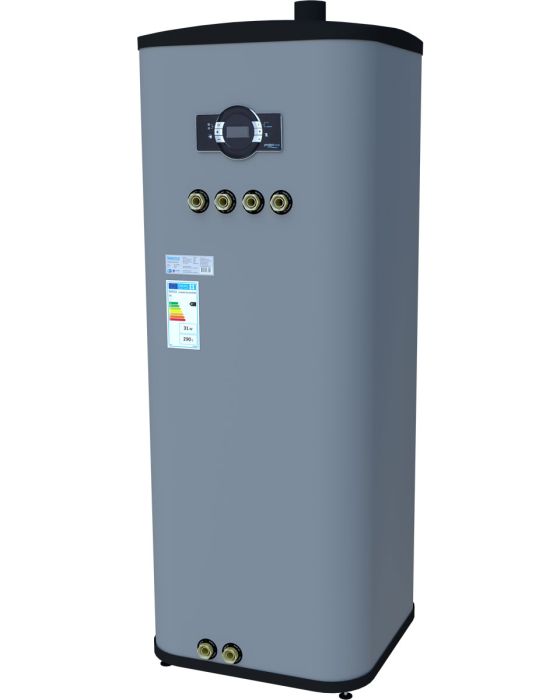

UniQube Gas Condensing SQ-BPSW

6 functions UniQube with integrated gas condensing boiler

The end-users of UniQube Gas Condensing technology will utilize the heat from the fuel virtually without loss, because of using latent condensing heat. It’s good for the environment because using less fuel means using fewer energy resources, lower CO2 emission and consequently It’s good for your wallet. Even more: the final user’s heating system will be supplied by free solar thermal energy too and all other UniQube properties: buffer function, hygienic hot water, hydraulic separator, thermal stratification.

DOUBLE A CLASS
A class energy efficiency boiler with over 90% thermal efficiency and A class energy efficiency UniQube

UP TO 107.5% THERMAL EFFICIENCY
Reached by condensing technology when operating at low-temperature conditions, utilising not only the heat generated by combustion but also the water vapour content

NATURAL GAS AND LPG
Both fuels can be used giving the final user a choice

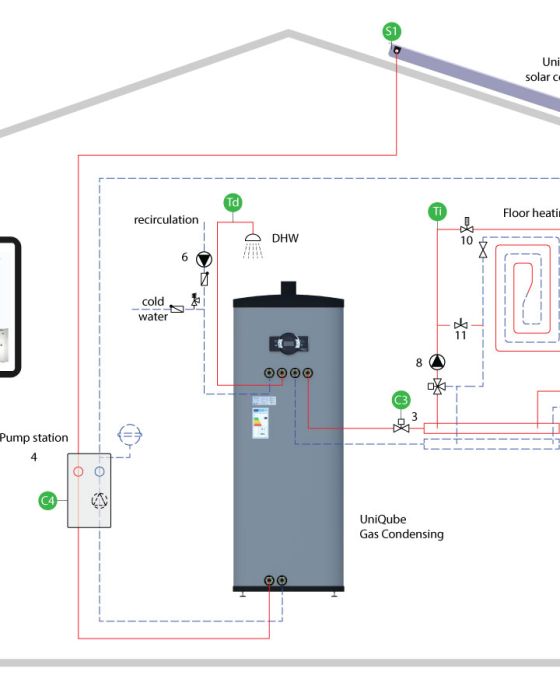

SOLAR AND GAS CONDENSING
Technologies combined with enegy-saver UniQube tank are providing lowest bills for heating and hygienic hot water

BUFFER INTEGRATION
Provides less energy loss due to low start/stop cycles of the boiler

DIGITAL CONTROL
with optional remote control of the heat source, room thermostats, anti-freeze protection

UNIQUBE MODEL - SOLAR STORAGE TANK, DOMESTIC WATER HEATER, STRATIFIED SEPARATOR STORAGE TANK
TYPE SQ-BPSW310
D (diameter)(mm)620
H1 (height)(mm)1300
h (connectors)(mm)1470
Connections C, E5/4"
H (height)(mm)2000
a (width)(mm)734
max. working temp.(°C)90
max. working pressure(bar)3
max. test pressure(bar)4,5
Net tank capacity(l)290
Approx. weight(kg)119
S2 Solar sensor position(mm)1110
S3 Heating sensor position(mm)910
S4 DHW sensor position(mm)710
Pivot measurement(mm)1730
Solar Heat Exchanger
Connections F, G5/4"
max. working pressure(bar)10
max. test pressure(bar)15
capacity(l)5
output area(m²)1,2
Water Heat Exchanger
Connections A, B5/4"
max. working pressure(bar)10
max. test pressure(bar)15
capacity(l)15
output area(m²)3,8
UNIQUBE GAS CONDENSING UNIT
TYPE GC
Gas CategoryII2H3B/P
Flue TypeC13(X),
C33(X),
C43(X),
C53(X),
C63(X),
C83(X),
B23, B33
Capacity-Efficiency
Heating power output (Thermal Power) (min – max) – 60/80°CkW5,6 – 14,1
Heating power output (Thermal Power) (min – max) - 30/50°CkW6,7 – 15
Heating power input (Thermal Load) (min – max)kW6,2 – 14,5
Efficiency (80°/60° C Max)%97,5
Efficiency (30°C Return)%107,5
Gas Consumption
Natural Gas (At Min-Max Power)m³/h0,65 – 1,53
Nox Class6
General
Power SupplyV
AC-Hz
230V
50Hz
Electric Consumption (Max-Standard
Pump / Efficient Pump)
W120 / 60
Protection ClassIPX4D
Weight (Net)kg28,5
General
C02 ratio (min – max-G20)%(8,9 - 9,15)
± 0,2

UniQube Gas Condensing Brochure

Download

Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV  Hessen, for complying with Pressure Equipment Directive
