Thermal Tank UniQube SQ-BPW
Domestic Water Heater - Stratified Separator Storage Tank
Thermal Tank UniQube SQ-BPW
On-demand heating of drinking water is the principle that is used for domestic water heaters. Heated drinking water is hygienic and can be used in many purposes. When choosing a non-solar heat source, this is most efficient model.
- Stand-alone storage tank
- Buffer storage tank
- Hydraulic separator storage tank
- Combined storage tank
- Home water heater
- Electric heater backup
- Delta up to 4 degrees
- More DHW at lower temperature
- For installations without solar thermal circuit
- Get more hygienic hot water from highest COP heat pump regime
- 20% lower delta of on-demand heat exchanger
Stratified Domestic water heater function
On-demand heating of drinking water is the principle that is used for domestic water heaters. Heated drinking water is hygienic and can be used in many purposes. When choosing a non-solar heat source, this is most efficient model.
- continuous flow domestic water heater, a hygienic storage tank
- domestic hot water heat exchanger made of stainless steel INOX 316 L corrugated pipe
- device for stratification of the heat
- hydraulic separator between the heat source circuit and the heating circuit
- equipped with four sleeves for sensors
- polyurethane high quality insulation, specific in very limited fire contribution, class B2 according to DIN 4102
- all flanges are replaceable and it can be modified to any other type of storage tank if necessary
- electric heater back up

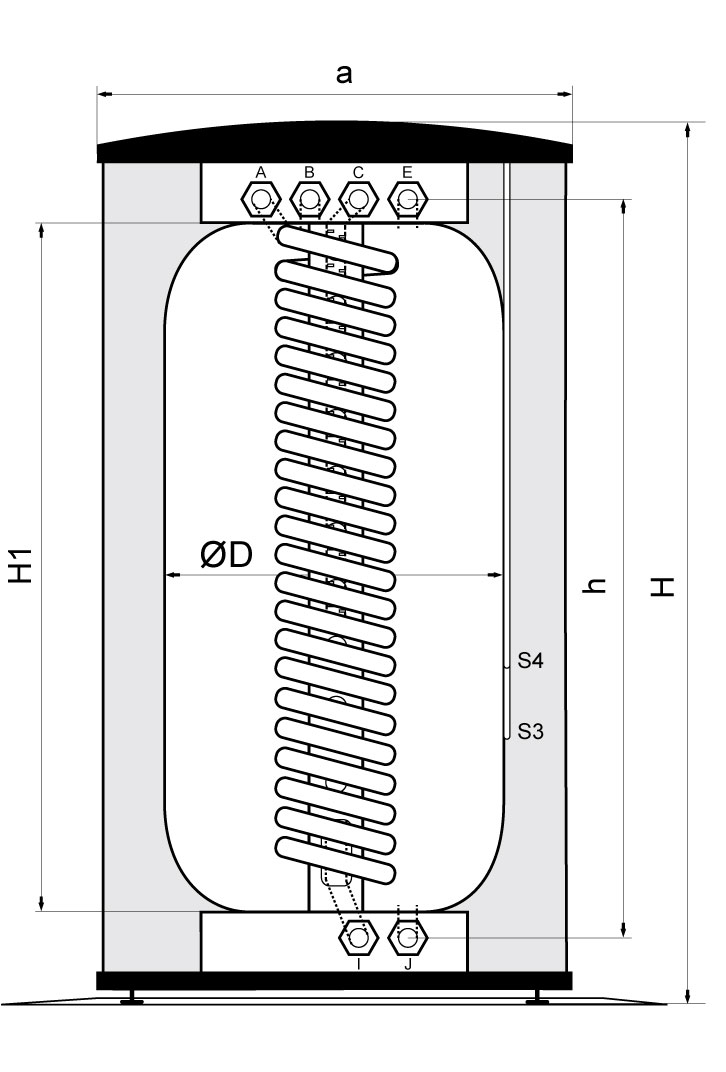

| UniQube SQ-BPW | 310 | 440 | 800 | |
|---|---|---|---|---|
| D (diameter) | (mm) | 620 | 620 | 890 |
| H1 (height) | (mm) | 1300 | 1730 | 1730 |
| h (connectors) | (mm) | 1320 | 1750 | 1750 |
| H (height) | (mm) | 1570 | 2000 | 2000 |
| a (width) | (mm) | 725 | 725 | 960 |
| Pivot measurement | (mm) | 1730 | 2130 | 2219 |
| Net tank capacity | (l) | 295 | 421 | 765 |
| Approx. weight | (kg) | 97 | 122 | 147 |
| Connections C, E, I, J | 5/4" | |||
| Max. working temp. | (°C) | 90 | ||
| Max. working pressure | (bar) | 6 | ||
| Max. test pressure | (bar) | 9 | ||
| S3 DHW sensor position | (mm) | 600 | 900 | 900 |
| S4 Heating sensor position | (mm) | 140 | 140 | 140 |
| S5 Overheating protection | (mm) | 140 | 140 | 140 |
| DHW Heat Exchanger | ||||
| Connections A, B | 5/4" | |||
| Capacity | (l) | 17,42 | 25,66 | 25,66 |
| Output area | (m²) | 5,44 | 7,93 | 7,93 |
| Nominal flow rate | (l/min) | 20 | ||
| Max. flow rate | (l/min) | 30 | ||
| Max. working pressure | (bar) | 10 | ||
| Max. test pressure | (bar) | 15 | ||
Production of Domestic Hot Water
Pressure Loss for UniQube DHW Heat Exchangers
Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV Hessen, for complying with Pressure Equipment Directive
