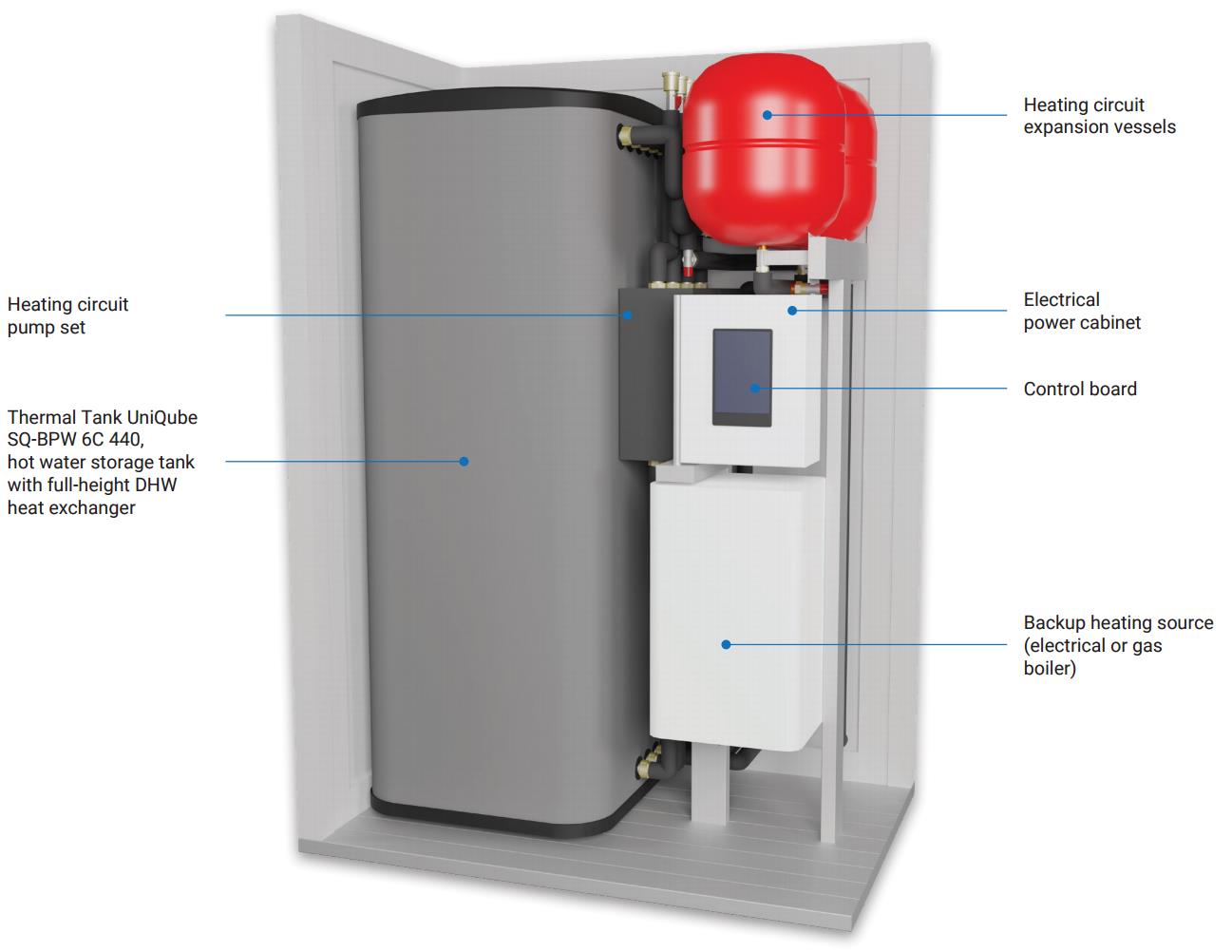

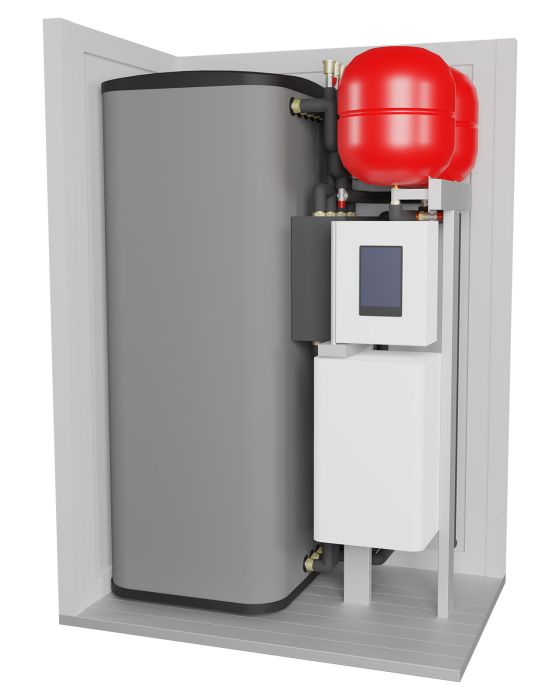

Plug-in Hybrid Station – Model 2
All-in-one tank: buffer and hygienic DHW
Plug-in Hybrid Station – Model 2
- Heat pump as the main heat source
- All-in-one tank: buffer and hygienic DHW
- Backup electrical or gas boiler for reliability
- Compact, modular design for indoor or outdoor installation
- Pre-fitted and factory tested
- Smart control with Wi-Fi remote
- Real-time performance monitoring
| Item | Specifications | |
|---|---|---|
| Domestic Thermal Tank | Solarico | UniQube SQ-BPW 6C 440 liters, hot water storage tank with single DHW heat exchanger |
| Backup heating source: Gas, or Electrical | Vaillant | Gas condensing boiler VU 20 CS/1-5 Electrical boiler eloBLOCK VE 12/14 SEE |
| Heating circuit mixing pump group | Vaillant | Mixing module - 2 x VDM 25M incl. three-way valve with actuator |
| DHW recirculation pump | DAB | Circulation pump Evosta 2 San |
| Fancoil circulation pump | DAB | Circulation pump Evosta 3 |
| Heating circuit expansion vessels | ZILIO | 2 x R50 liters 3/4 ZILIO heating system |
| Three-way mixing valve | IMI Heimeier | 4 x Three-way mixing valve 1” incl. EMO-T thermoelectric actuator |
| Weather-compensated system control | Vaillant | sensoCOMFORT VRC 720 |
| * Recommended heat pump power: 8 ÷ 16kW | ||
