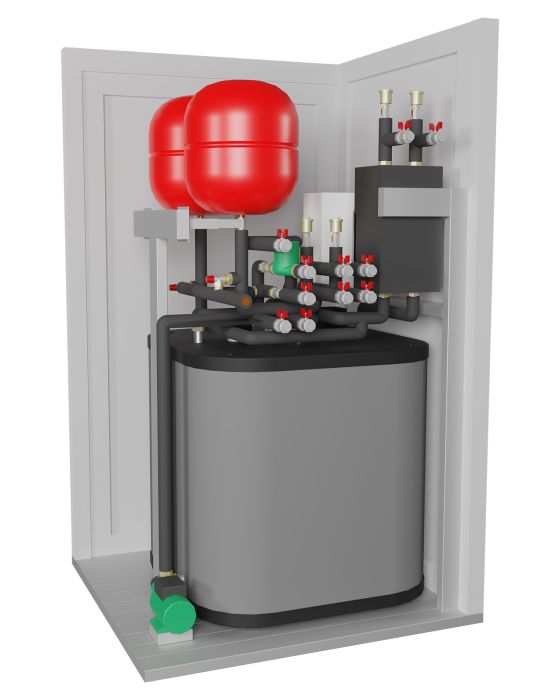

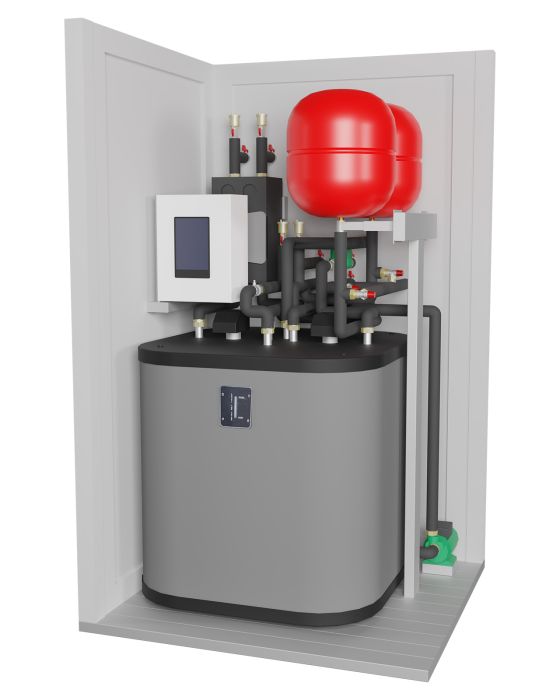

Plug-in Hybrid Station – Model 3
All-in-one tank: buffer and hygienic DHW
Plug-in Hybrid Station – Model 3
- Support heating with solar thermal collectors with drain-back operation
- Heat pump as the main heat source
- All-in-one tank: unpressurized buffer, drain-back and hygienic DHW
- Backup electrical heaters for reliability
- Compact, modular design for indoor or outdoor installation
- Pre-fitted and factory tested
- Smart control with Wi-Fi remote
- Real-time performance monitoring

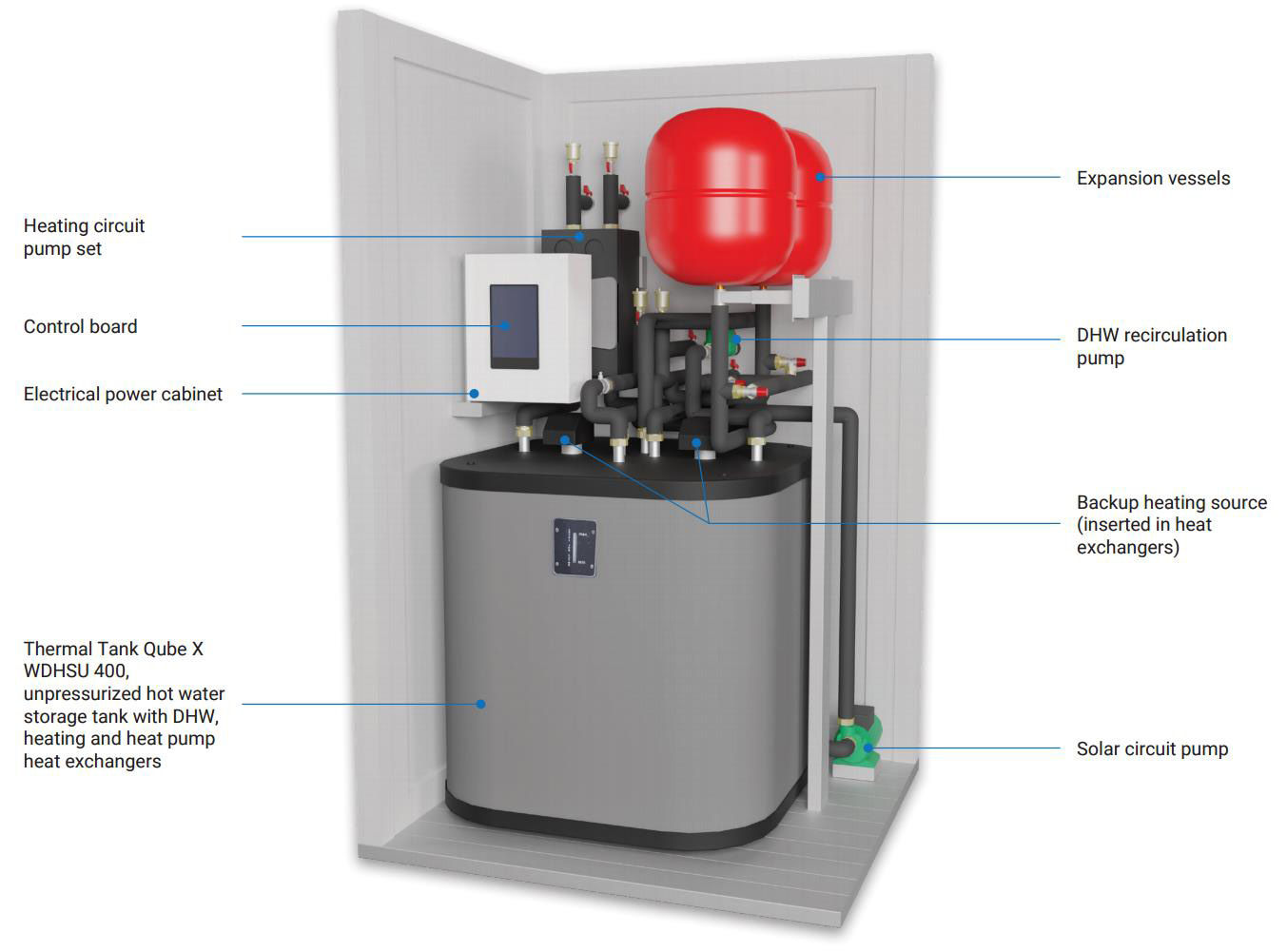

| Item | Specifications | |
|---|---|---|
| Unpressurized Thermal Tank and drain back reservoir | Solarico | Qube X SQ-WDHSU 400 liters, hot water storage tank with three heat exchangers. DHW, heat pump, underfloor heating, supports connection of max. 6 solar thermal collectors |
| Backup heating source | Thermis | 2 x 3kW electrical resistance with thermostat |
| Heating circuit mixing pump group | Vaillant | Mixing module VDM 25M incl. three-way valve with actuator |
| Solar drain back circuit pump | DAB | Centrifugal pump KPF 30/16 M |
| DHW recirculation pump | DAB | Circulation pump Evosta 2 San |
| Fancoil circulation pump | DAB | Circulation pump Evosta 3 |
| Heating circuit expansion vessels | ZILIO | 2 x R50 liters 3/4 ZILIO heating system |
| Three-way mixing valve | IMI Heimeier | 4 x Three-way mixing valve 1” incl. EMO-T thermoelectric actuator |
| Weather-compensated system control | Vaillant | sensoCOMFORT VRC 720 |
| * Recommended heat pump power: 6 ÷ 12kW | ||
