UniQube Heat Pump SQ-BPS HP 310

Solar Storage Tank - Domestic Water Heater - Stratified Separator Storage Tank

UniQube Heat Pump SQ-BPS HP 310

Heat pump with integrated UniQube enables savings of up to 70% per year and can operate at external air temperatures of -10°C. An additional space can be cooled or ventilated with this model. The tank inside is combining functions of stratification, buffer, hydraulic separator, solar storage tank and solar support for the heating system.

It is one-piece solution for high efficiency central heating systems.

  • Solar storage tank
  • Stand-alone storage tank
  • Buffer storage tank
  • Hydraulic separator storage tank
  • Combined storage tank

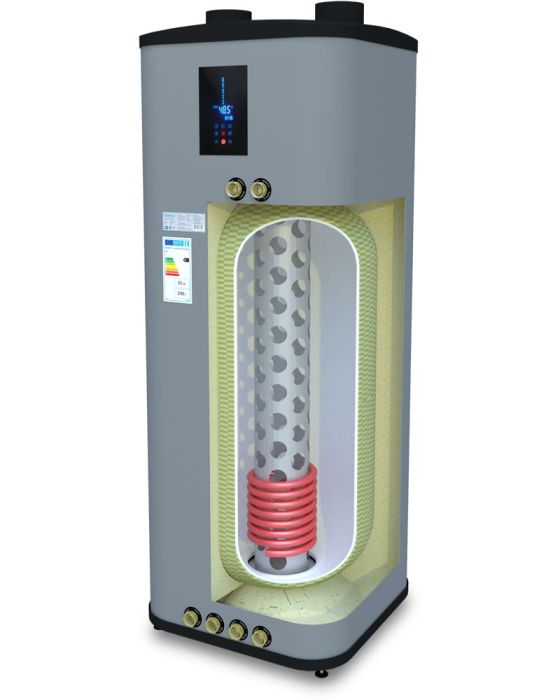

Heat pump with integrated stratified solar storage tank function

Heat pump with integrated UniQube enables savings of up to 70% per year and can operate at external air temperatures of -10°C. An additional space can be cooled or ventilated with this model. The tank inside is combining functions of stratification, buffer, hydraulic separator, solar storage tank and solar support for the heating system.

It is one-piece solution for high efficiency central heating systems.

  • High C.O.P.  - (coefficient of performance) is a rating which tells us how much heat is produced compared to the amount of electricity used
  • Manufactured according to highest EU standards  - manufactured in Europe according to highest standards
  • Simple installation and control - heat pumps for sanitary water are simple to install into your area and they're even simpler to control. You'll have virtually no work with them
  • Heat Transmitter - coiled in the inside of buffer water container, it has a lifespan that is practically unlimited, since it is not in direct contact with sanitary water
  • Energy Class A - heat pumps for sanitary water with the A Energy Class are placed among the best energy efficient machines on the European market
  • Touch-screen Intelligent Control - the UniQube Heat Pump is controlled with a friendly and logical user interface on a comfortably big touch-screen. Options for connection to different heating systems (heating oil, wood, pellets or solar system). Options for connection to photovoltaic
  • Utilizing Inlet/Outlet Air - heating the sanitary water, ventilation of another room with its inlet air, and cooling another room with its outlet air - like the cellar with storage for winter, for example



UNIQUBE MODEL - SOLAR STORAGE TANK, STRATIFIED SEPARATOR STORAGE TANK
TYPE SQ-BPS310
D (diameter)(mm)620
H1 (height)(mm)1300
h (connectors)(mm)1320
H (height)(mm)2000
a (width)(mm)725
Connectors C, E, I, J5/4"
max. working temp.(°C)90
max. working pressure(bar)6
max. test pressure(bar)9
Net tank capacity(l)305
Approx. weight(kg)91
S2 Solar sensor position(mm)1110
S3 Heating sensor position(mm)910
Pivot measurement(mm)1730
Solar Heat Exchanger
Connectors F, G5/4"
max. working pressure(bar)10
max. test pressure(bar)15
capacity(l)5
output area(m²)1,2
UNIQUBE HEAT PUMP UNIT
TYPE DHWHP-O3000
Operational area of the compressor°C-3÷35
Max. temperature of output water°C55
Heat outputW2800
C.O.P. A20/W15-W454.1
Type of compressorHitachi - rotary
Compressor consumptionW695
Rated current of the compressorA3.2
RefrigerantR134a
Electricity supply230 V / 1 Ph / 50 Hz
Required fuseA16
Noise leveldB(A)48
Airflowm3500
Available pressurePa60
Diameter of air pipemm150
Max. length of air pipem10
Net weight of heat pump unitkg40
Use of hot water cycleXL
Sanitary water heating energy classA

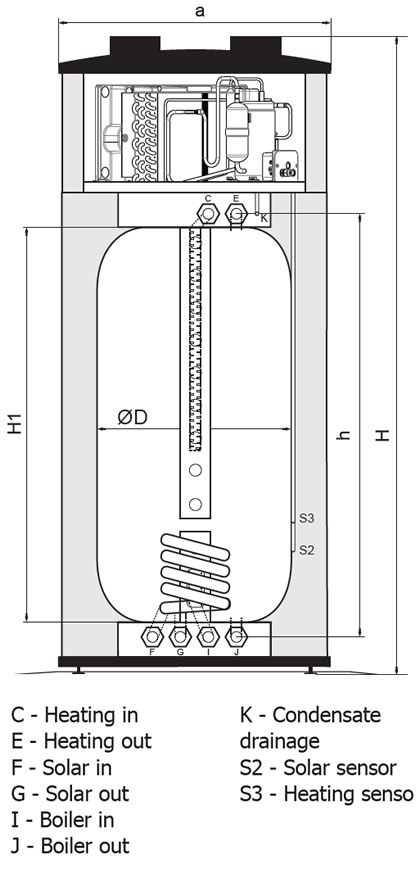

UniQube Heat Pump SQ-BPS Section Dimensions

Dedication of our expert team have already contributed the implementation of quality standards ISO 9001:2008 and certification of the UniQubes, by TUV  Hessen, for complying with Pressure Equipment Directive

Heart of your home system

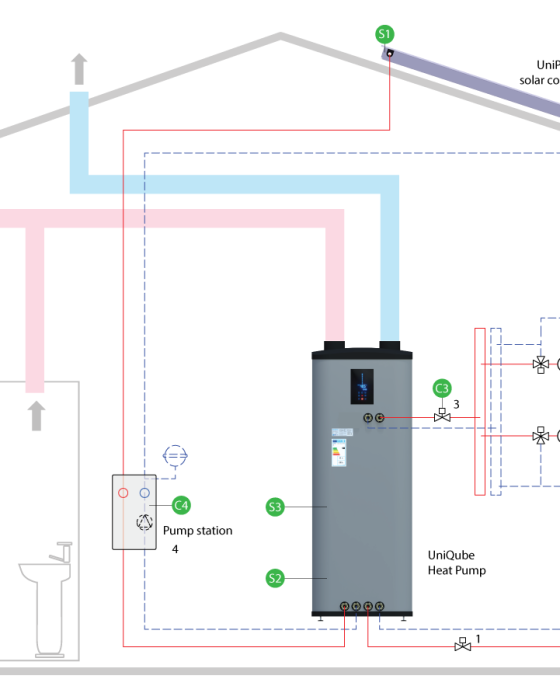

UniQube Heat Pump SQ-BPS Schematic Installation
UniQube Heat Pump SQ-BPS Schematic Installation
